AIR-TO-WATER HEAT THREE-PHASE PUMP 20KW
Use Mouse Wheel to Zoom In/Out
| Price: | €9.500,00 VAT excluded (22%) |
|---|---|
| Item code: | AW-0020M3 |
| Brand: |  |
| Unit of measurement: | PZ |
| Weight: | 180,000 Kg |
| Quantity: |
Description

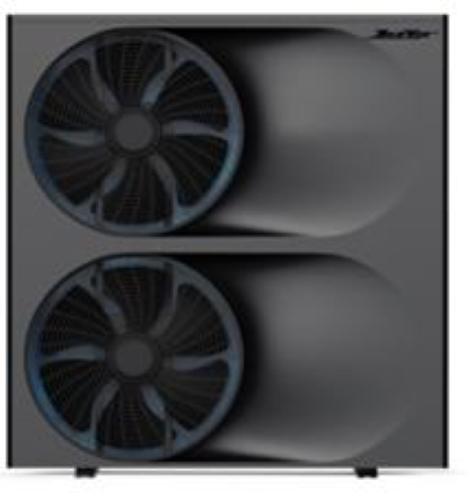

Air-Water Heat Pump DanVex AW-20M3
The DanVex inverter heat pump is a 3-in-1 system that provides heating, cooling, and domestic hot water. Monoblock concept: all components are combined in a single outdoor unit, and the pump has a simple hydraulic connection to the home's heating and water supply systems. Installation does not require a refrigeration technician. The built-in backup electric boiler allows efficiency when ambient temperatures drop to -25°C. The intelligent controller with Wi-Fi and Modbus enables remote control and monitoring of the system.
Technical Data
| Model | AW-20M3 |
| Heating capacity (A7/W35) | 20 kW |
| COP | 4.43 |
| Heating capacity (A7/W55) | 20 kW |
| COP | 2.78 |
| Cooling capacity (A35/W7) | 16.8 kW |
| Power supply V/Ph/Hz | 380-415/3/50 |
| Electric heater power | 6 kW |
| Maximum water temperature ? | 60 °C |
| Operating modes | Heating + hot water, Cooling + hot water |
| Compressor | DC inverter |
| Circulation pump | DC inverter |
| Refrigerant | R32 |
| Noise dB(A) | 58 dB(A) |

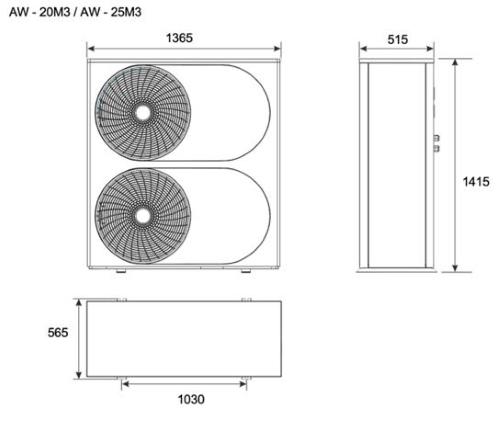

| Dimensions mm | 1365x565x1415 |
| Net weight | 170 kg |
Features
- Fully inverter technology
- Energy class A
- Monoblock concept easy to install, does not require a freon cooling circuit
- Low noise level
- Hot water temperature up to 60°C
- Controller with touch screen and RS485
- WiFi control with smartphone
- Refrigerant leak detector
- Cascade connection
Warranty
4 years
